Next-Level Smart Security with Full-Color Night Vision
The Aqara G5 Pro is more than just a camera—it's a complete smart security solution. With 4MP ultra-clear resolution, a wide 133° field of view, and full-color night vision, it captures every detail, day or night. It also doubles as a powerful smart home hub supporting Zigbee, Matter, and Thread technologies.
Specification
G5 Pro (PoE)
G5 Pro (Wi-Fi)
Product Name

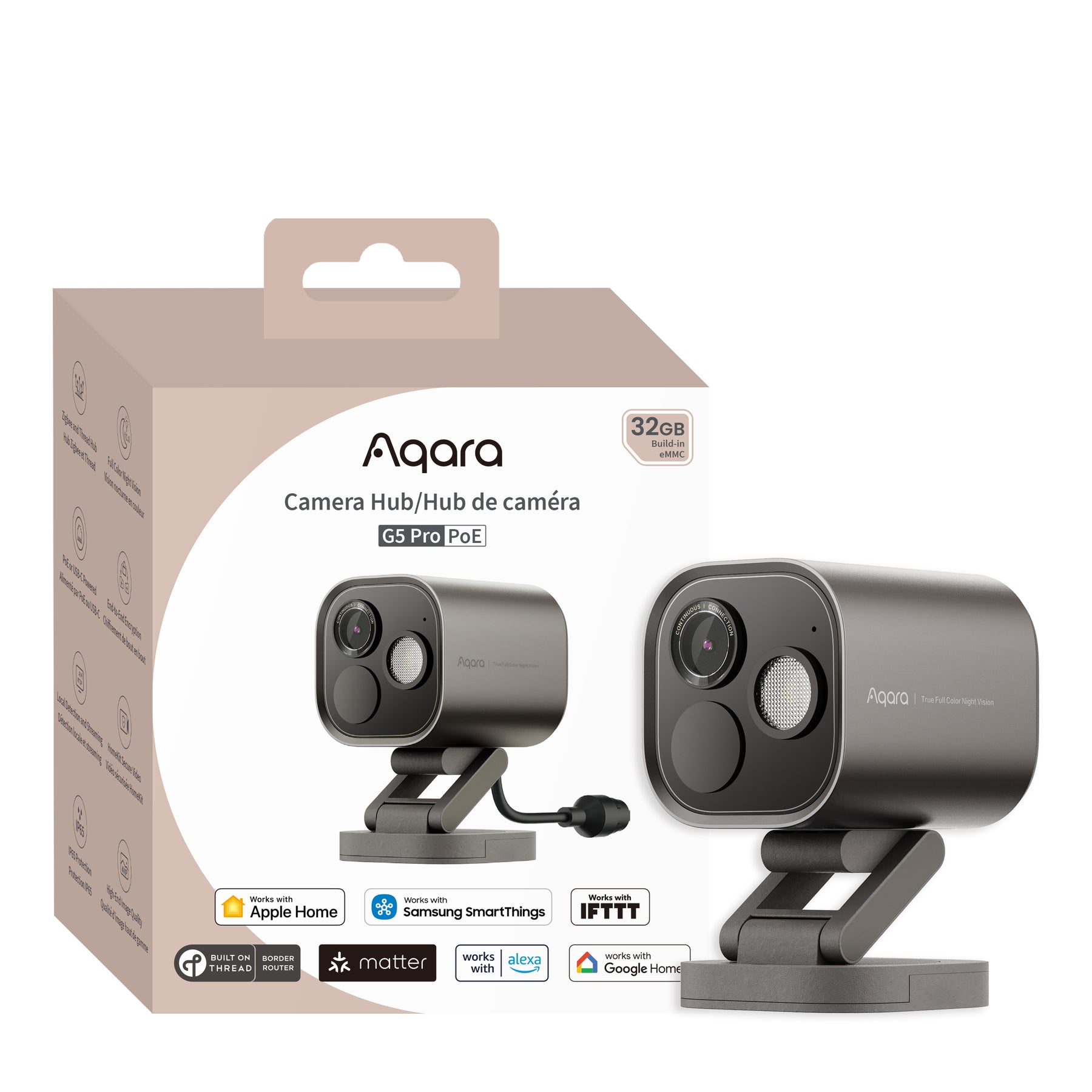

Aqara Camera Hub G5 Pro (PoE)

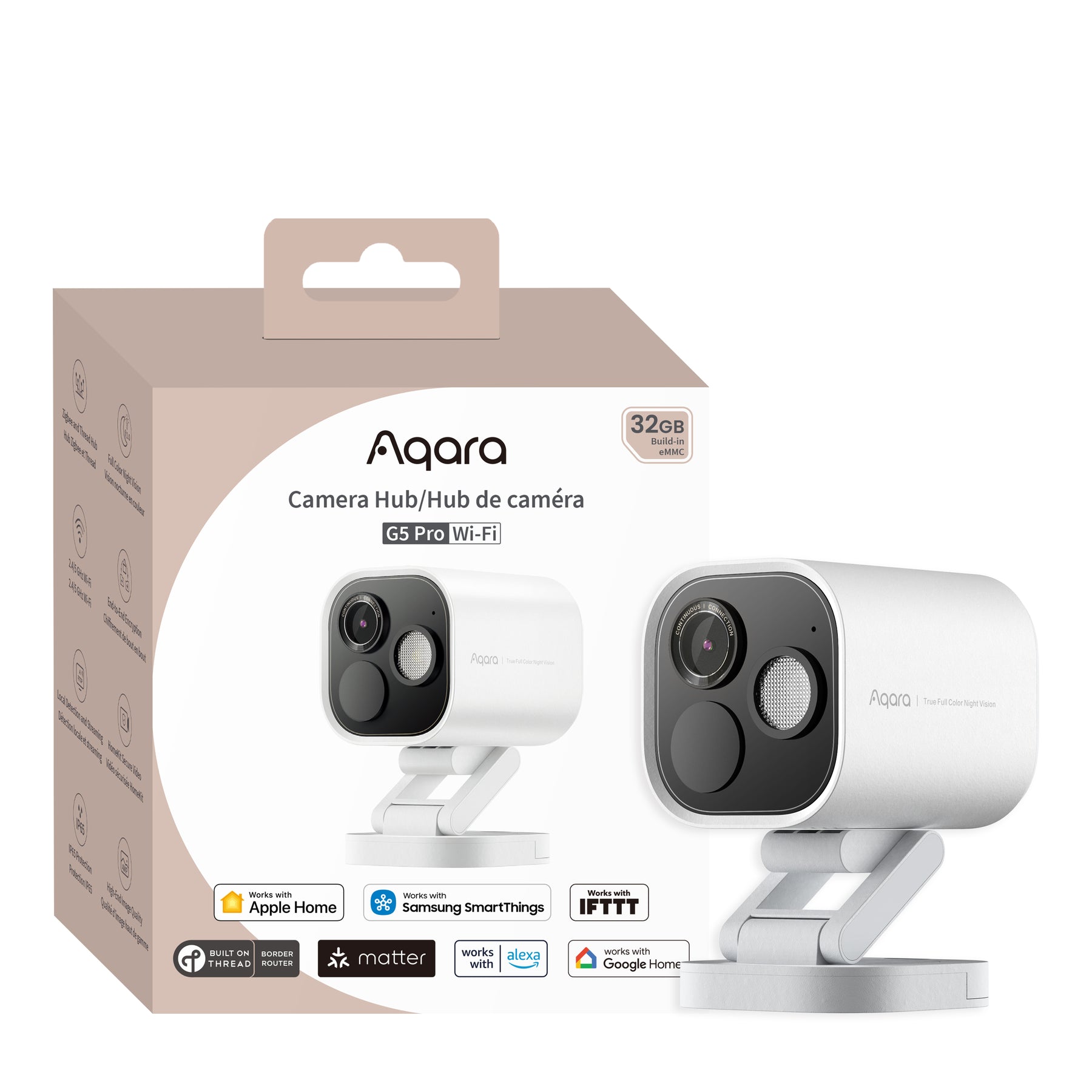

Aqara Camera Hub G5 Pro (Wi-Fi)
Model
CH-C03D
CH-C07D
Resolution
Quad HD 2688×1520
Quad HD 2688×1520
Image Sensor Size
1/1.8”
1/1.8”
Field of View (FOV)
133° (Diagonal)
133° (Diagonal)
Aperture
f/1.0
f/1.0
Power Input
USB-C: 5V 2A / PoE: 48V 0.27A
USB-C: 5V 2A
PIR Detection Angle
Horizontal 100°, Vertical 65°
Horizontal 100°, Vertical 65°
Spotlight
3W, 120° Beam, 3000K Color Temp.
3W, 120° Beam, 3000K Color Temp.
Communication Protocols
Ethernet, Zigbee, Thread, Bluetooth
Wi-Fi, Zigbee, Thread, Bluetooth
Dimensions
70.5×70.5×89 mm
70.5×70.5×89 mm
Operating Temperature
-30°C ~ +50°C
-30°C ~ +50°C
Operating Humidity
0 ~ 95% RH, No Condensation
0 ~ 95% RH, No Condensation
Free Cloud Storage Trial
30 days (on first connection)
30 days (on first connection)
What’s in the Box
Camera, Manual, Screws, Anchors, Opener, Power Cable, RJ45 Kit
Camera, Manual, Screws, Anchors, Opener, Power Cable
FAQ'S ?

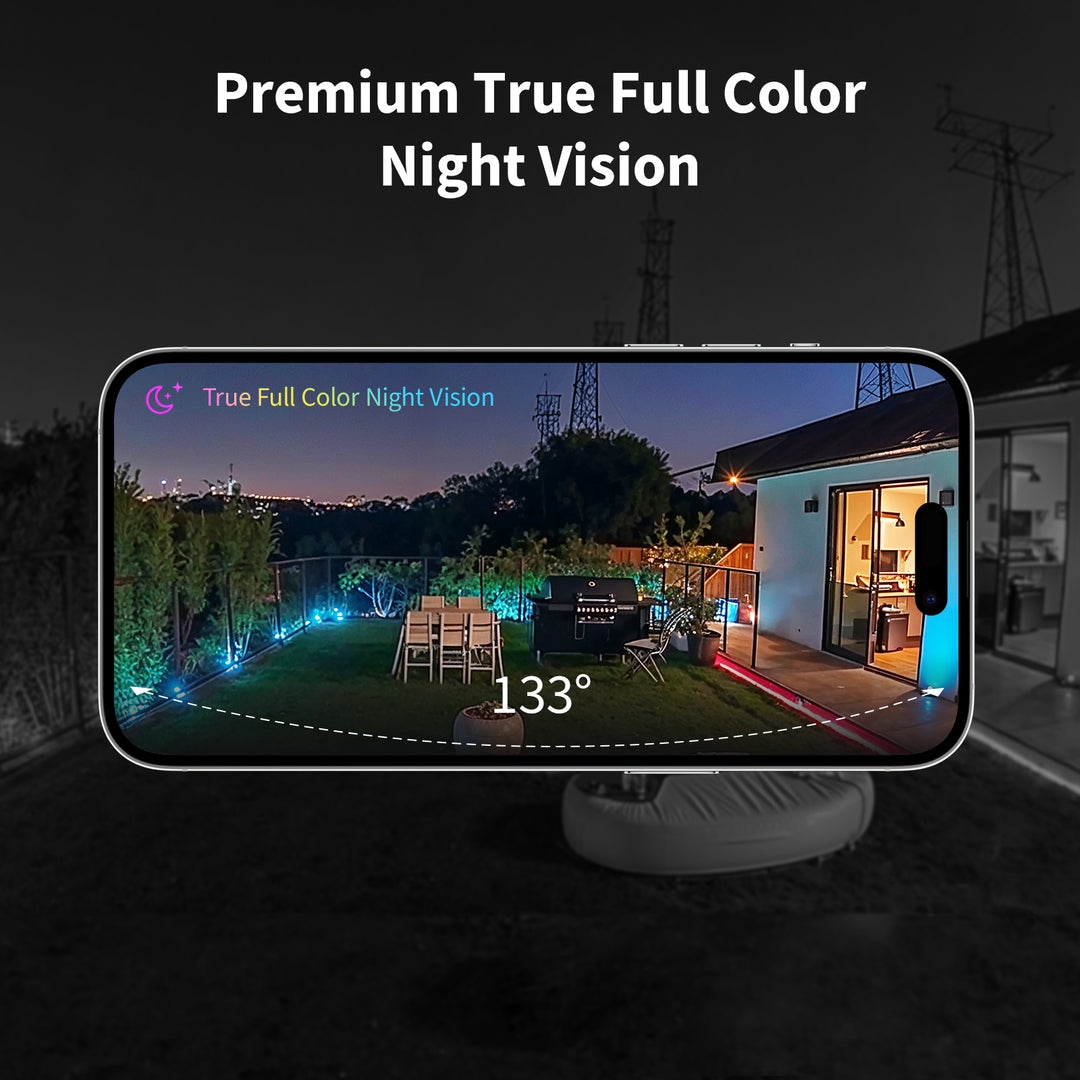

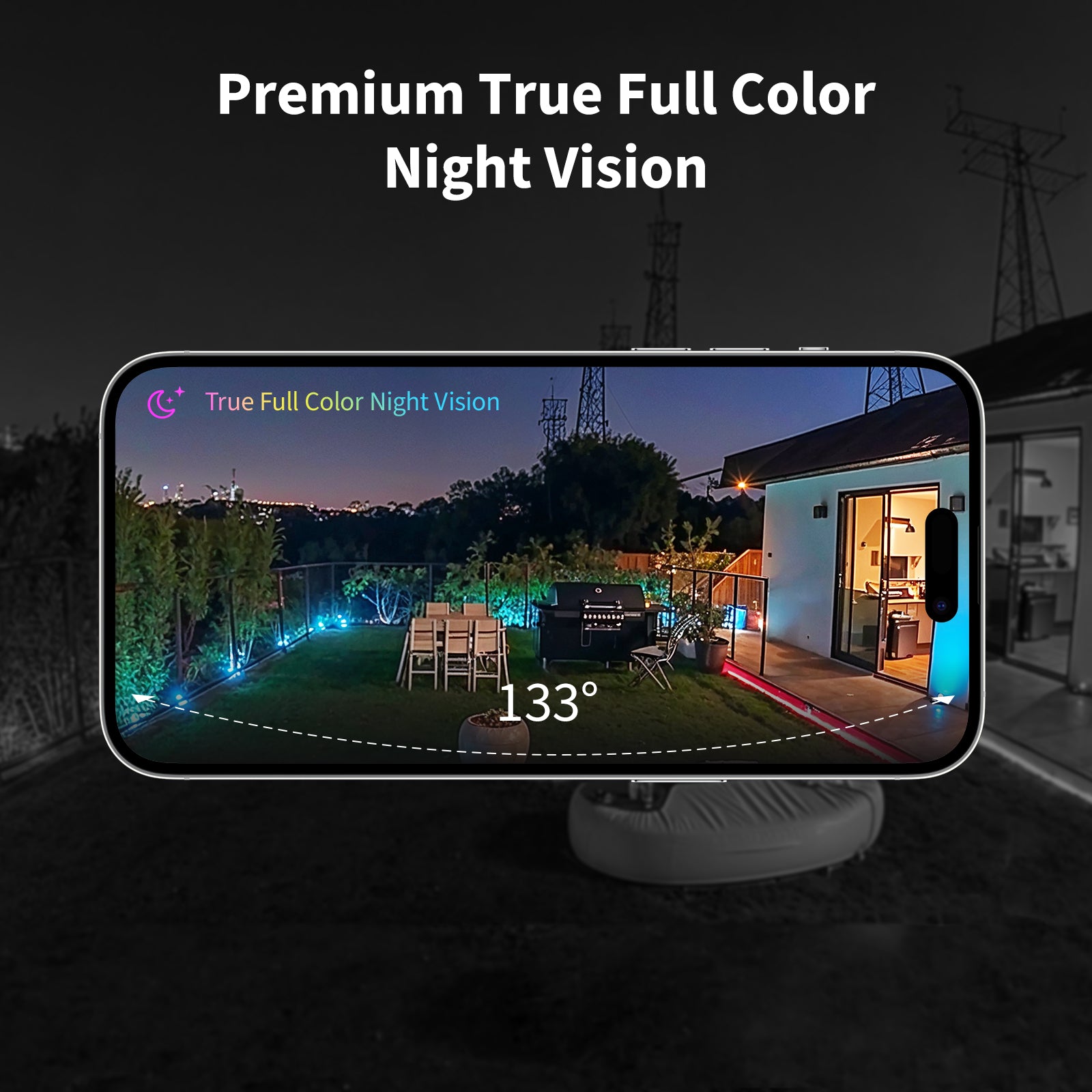

1. Does the G5 Pro support full-color night vision? Yes, it uses a warm spotlight and infrared LEDs to capture color images even in very low light.
2. Can I use it with Apple HomeKit? Yes, the G5 Pro supports HomeKit Secure Video with end-to-end encrypted iCloud storage.
3. Is it a smart home hub? Yes! It functions as a Zigbee 3.0 hub, Matter controller, and Thread border router.
4. How is the video stored? It supports local eMMC storage (32GB), NAS, MicroSD (via USB-C), and RTSP.

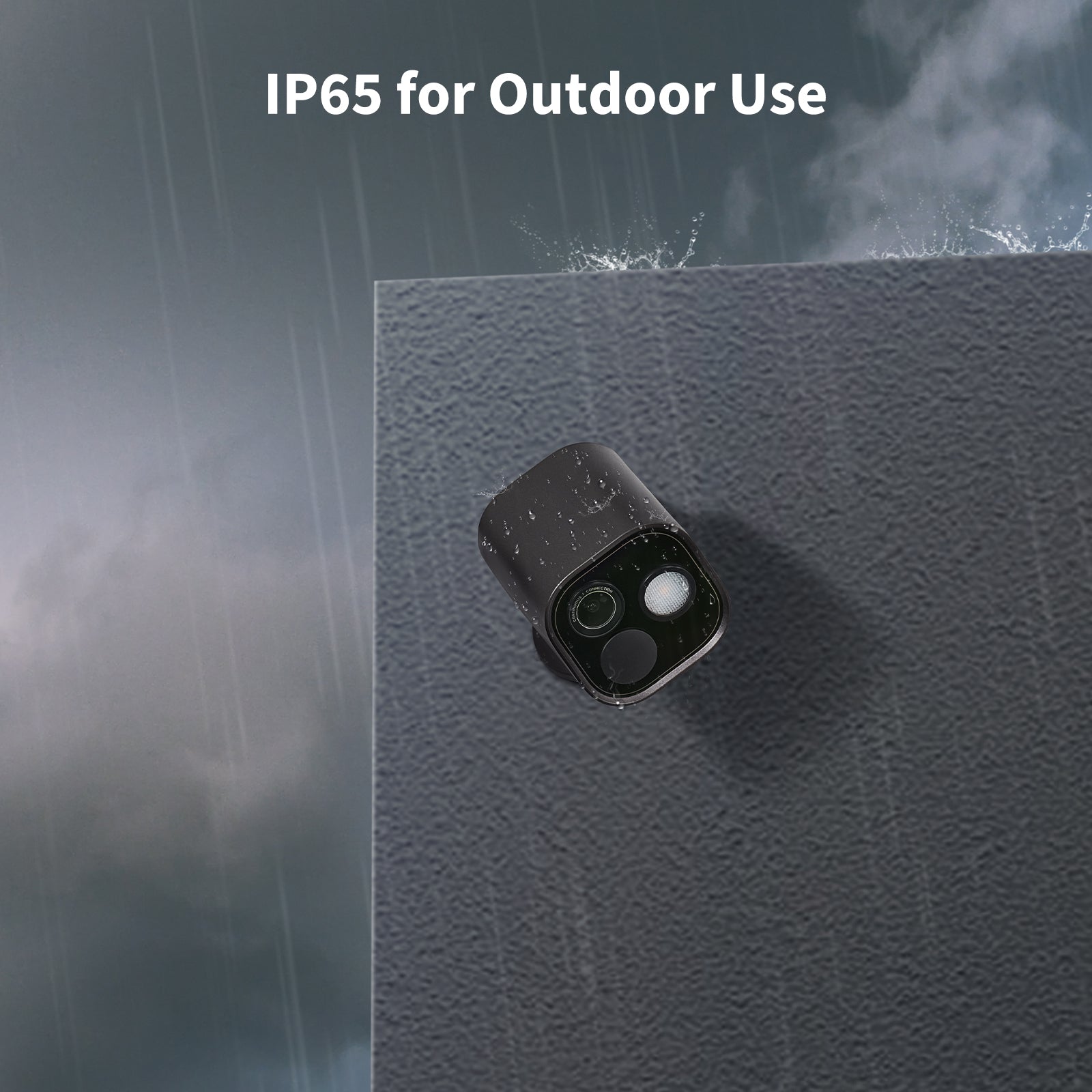

5. Is it suitable for outdoor use? Yes, it's IP65 rated and works in temperatures from -30°C to +50°C.
